TAGA Harmony TAV-506 v.2 – 5.0 Floorstanding Home Theatre Speaker System
The TAGA Harmony TAV-506 v.2 is a completely redesigned home theatre speaker system, engineered to deliver high-quality stereo performance alongside powerful, dynamic home-cinema sound. This is not a cosmetic update—every aspect of the construction has been refined to elevate sound performance to a new level.
The primary challenge for TAGA Harmony’s designers and acoustic engineers was to combine natural, musical stereo sound (especially for the front floorstanding speakers) with the impact and clarity required for home theatre. While this may sound simple, very few speaker manufacturers can achieve this balance—and TAGA Harmony is one of them.
The secret lies not only in premium components and cabinet design, but in the final tuning of tonal balance. This is where TAGA’s acoustic engineers demonstrate true craftsmanship, resulting in a system that delivers smooth, detailed, and balanced sound, massive dynamics, and rich high-resolution audio across the entire frequency range.
Finished with a classic yet elegant design, the TAV-506 v.2 blends beautifully into any living space while standing out as a powerful audio statement—perfect for both stereo listening and immersive home cinema.
Key Features
Completely Redesigned Construction
Second-generation model with major acoustic and structural improvements
Optimized for stereo music and home-theatre performance
TLIE Cabinet Technology
TAGA Low Interference Enclosures (TLIE) made from high-quality MDF
Increased stiffness reduces unwanted resonances and vibrations
Cabinet shape minimizes diffraction and turbulence
Improved High & Mid Frequency Performance
TWG (TAGA WaveGuide) tweeter faceplate for even sound dispersion
Ultra-light fiberglass midrange cone with rubber suspension for fast response
High-performance voice coils and large magnet systems for clarity and power handling
Powerful, Controlled Bass
Paper-cone woofers with heavy-duty voice coils for deep, accurate bass
BOM Bass Reflex Omnidirectional Module with recessed diffuser
Reduced port turbulence and improved low-frequency dispersion
High-Quality Crossover Network
Precisely selected crossover components
Ensures tonal neutrality, reliability, and long-term performance
Premium Internal Wiring
High-quality internal cabling maintains signal integrity
Preserves fine musical details from amplifier to drivers
Classic Design
Timeless, elegant appearance
Designed to complement both modern and traditional interiors

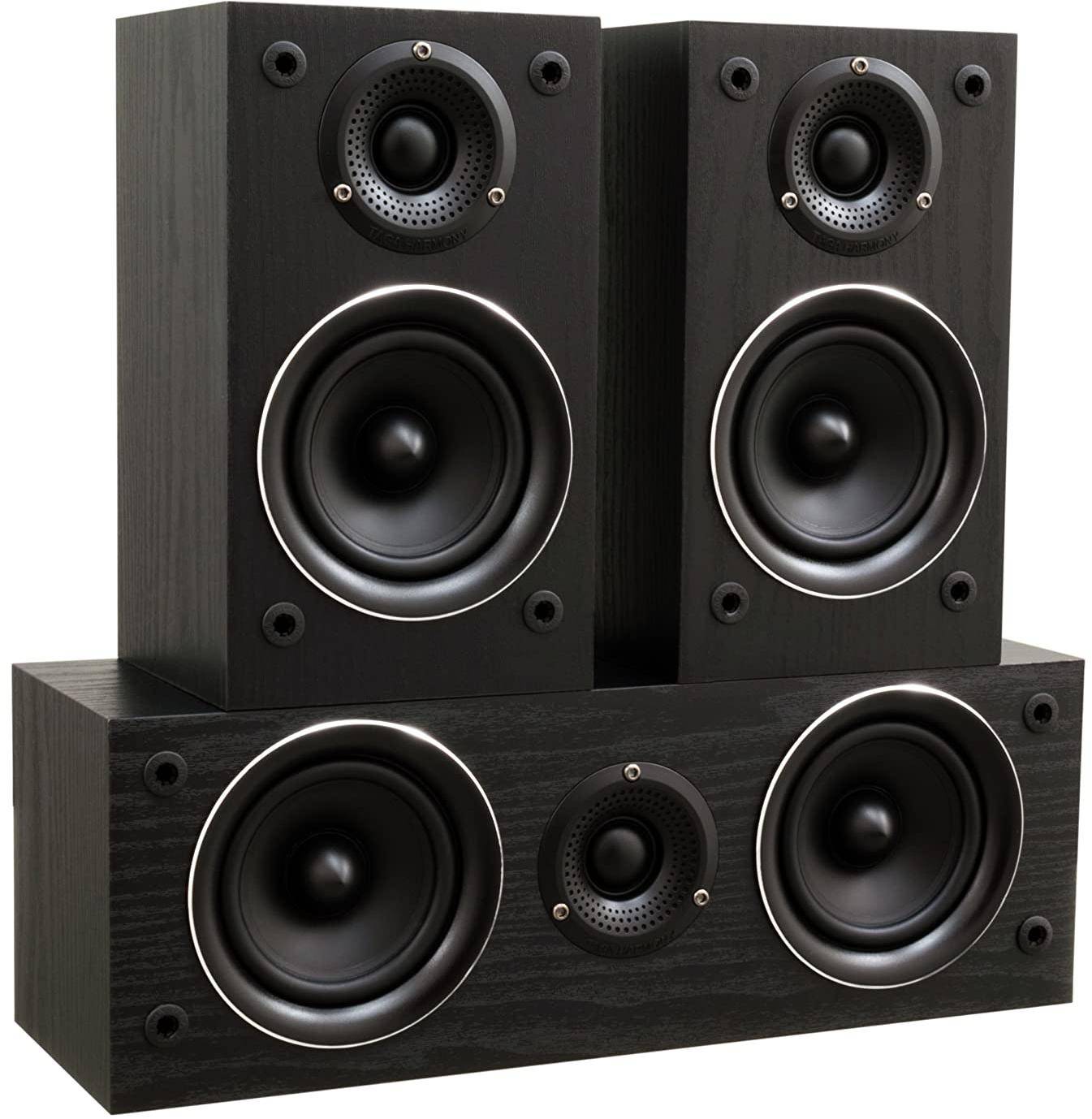

System Configuration (In the Box)
2 × TAV-506F v.2 Floorstanding Speakers
2 × TAV-506S v.2 Surround Speakers
1 × TAV-506C v.2 Center Speaker
User Documentation
Specifications

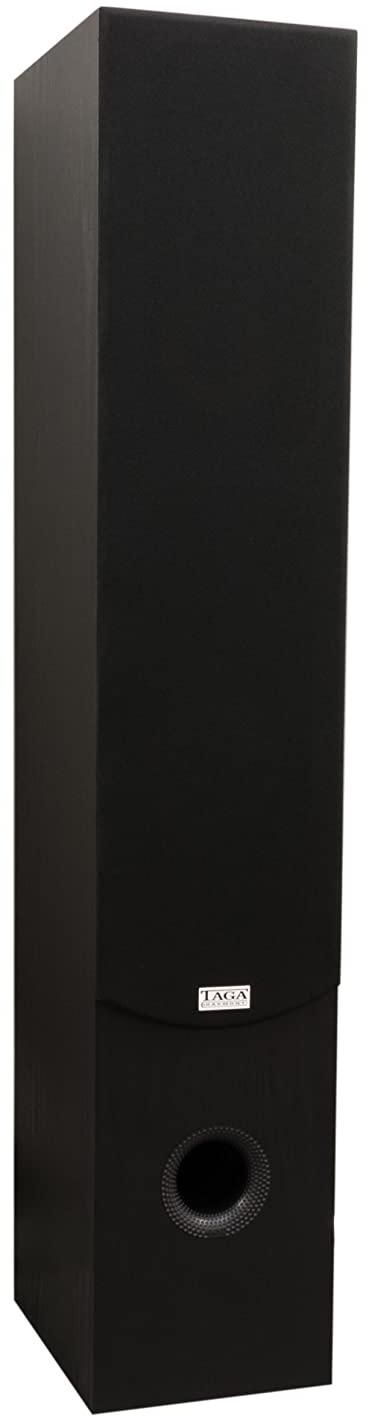

TAV-506F v.2 – Floorstanding Speakers
Design: 3-way, front bass-reflex
Tweeter: 25mm (1″) silk dome with TWG faceplate
Midrange: 133mm (5.25″) glass-fiber cone
Bass: 2 × 133mm (5.25″) paper cone
Frequency Response: 42Hz – 25kHz
Sensitivity: 89 dB
Impedance: 6 Ω
Recommended Amplifier Power: 20 – 120W
Dimensions (H × W × D): 90 × 17 × 23.5 cm (excluding spikes)
Weight: 20.4 kg (pair)
TAV-506C v.2 – Center Speaker
Design: 2-way, double rear bass-reflex
Tweeter: 25mm (1″) silk dome with TWG faceplate
Bass/Midrange: 2 × 102mm (4″) paper cone
Frequency Response: 55Hz – 25kHz
Sensitivity: 88 dB
Impedance: 6 Ω
Recommended Amplifier Power: 20 – 100W
Dimensions (H × W × D): 14 × 40 × 14.5 cm
Weight: 2.8 kg
TAV-506S v.2 – Surround Speakers
Design: 2-way, rear bass-reflex
Tweeter: 25mm (1″) silk dome with TWG faceplate
Bass/Midrange: 102mm (4″) paper cone
Frequency Response: 55Hz – 25kHz
Sensitivity: 86 dB
Impedance: 6 Ω
Recommended Amplifier Power: 20 – 100W
Dimensions (H × W × D): 24.5 × 14 × 14.5 cm
Weight: 3.5 kg (pair)
General Information
Brand: TAGA Harmony
Model: TAV-506 v.2
Year: 2022
Color: Brown
Warranty
Warranty Type: Official Manufacturer Warranty
